High Pressure Socket Spigot Tee Cement Mortar Lining With Flanged Branch

Ask Lasest Price
Brand Name :	NO
Model Number :	DN80-DN2600
Certification :	NO
Payment Terms :	L/C, D/A, D/P, T/T
Supply Ability :	10 tons per month
Delivery Time :	20 to 60 days

Add to Cart

Product Details
Company Profile

High Pressure Socket Spigot Tee Cement Mortar Lining With Flanged Branch

High Pressure Socket Spigot Tee Cement Mortar Lining With Flanged Branch

We manufacture and supply ductile iron socket-spigot tee with flanged branch with the premium quality raw materials,ensure high durability and strength. The range of ductile iron socket-spigot tee with flanged branch meets various industrial requirements. We offer these ductile iron socket-spigot tee with flanged branch in different sizes and lengths in order to meet the various requirements of our esteemed clients.
PN10 ,PN16 & PN25 are available
Available from DN80-2600
Working pressure PN10/16/PN25
Maximum syrength 420MPa
WRAS approved.

Main				Branch			Weight (kg)
DN	e	Lu	J	DN	e1	Lu’	PN10		PN16		PN25
DN	e	Lu	J	DN	e1	Lu’	T type	K type	T type	K type	T type	K type
80	8.1	85	275	80	8.1	165	14.0	14.7	14.0	14.7	14.0	14.7
100	8.4	85	275	80	8.1	175	16.4	18.7	16.4	18.7	16.4	18.7
100	8.4	95	285	100	8.4	180	17.8	20.1	17.8	20.1	17.8	20.1
125	8.7	85	275	80	8.1	190	18.7	20.6	18.7	20.6	18.7	20.6
		100	285	100	8.4	195	20.5	22.3	20.3	22.2	20.9	22.8
		110	285	125	8.7	200	21.8	23.7	21.8	23.7	22.4	24.3
150	9.1	85	275	80	8.1	205	23.7	26.1	237	26.1	23.7	26.1
		100	285	100	8.4	210	25.4	27.6	25.4	27.6	25.1	27.6
		110	285	125	8.7	215	27.8	30.2	27.7	30.2	27.7	30.2
		130	310	150	9.1	220	30.2	32.7	30.2	32.7	30.2	32.7
200	9.8	90	275	80	8.1	235	32.5	34.5	32.5	34.5	32.5	34.5
		100	280	100	8.4	240	34.3	36.3	34.3	36.3	34.3	36.3
		110	285	125	8.7	240	37.3	39.3	37.3	39.3	37.3	39.3
		130	310	150	9.1	250	40.2	42.2	40.2	42.2	40.2	42.2
		150	340	200	9.8	260	46.6	48.6	47.0	49.0	48.5	50.5
250	10.5	90	315	80	8.1	265	43.4	44.8	43.4	44.8	43.4	44.8
		100	325	100	8.4	270	44.9	46.4	44.9	46.4	45.0	45.8
		115	325	125	8.7	255	51.1	52.6	51.1	52.6	51.7	52.8
		130	360	150	9.1	280	57.3	58.7	67.3	58.7	58.3	59.7
		150	385	200	9.8	290	57.9	59.1	57.9	59.1	59.7	61.1
		180	415	250	10.5	300	65.7	67.6	66.7	68.1	70.2	71.1
300	11.2	90	340	80	8.1	295	58.8	61.1	58.8	61.1	58.8	61.1
		105	355	100	8.4	300	62.1	64.4	62.0	64.3	62.6	64.9
		115	360	125	8.7	285	64.1	66.4	64.1	66.4	64.7	67.0
		130	390	150	9.1	310	70.9	76.3	71.9	76.3	71.9	77.3
		160	415	200	9.8	320	77.6	79.9	77.6	79.9	79.4	81.7
		190	445	250	10.5	330	87.3	89.6	87.0	89.3	90.6	92.9
		215	475	300	11.2	340	97.8	100.1	97.9	99.8	112.7	115.0
350	11.9	95	345	80	8.1	325	68.3	73.3	68.3	73.3	68.3	73.3
		100	355	100	8.4	330	72.7	77.7	72.6	77.6	73.2	78.2
		115	360	125	8.7	315	73.4	78.4	73.4	78.4	74.0	79.0
		135	390	150	9.1	340	85.2	90.2	85.2	90.2	85.2	90.2
		160	415	200	9.8	350	88.7	93.7	88.7	93.7	90.5	95.5
		190	445	250	10.5	350	106.0	110.0	116.0	120.0	127.0	131.0
		210	475	300	11.2	350	114.0	122.0	120.0	124.0	131.0	135.0
		240	500	350	11.9	380	121.0	125.5	123.3	128.3	132.0	136.2

Socket spigot tee with flange branch.pdf

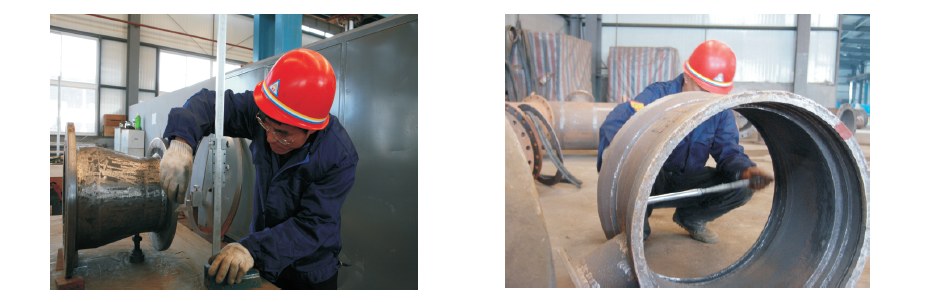

Quality Inspection
