Reducing Flange Ductile Iron Fittings Round Class PN10 PN16 PN25 Pressure

Ask Lasest Price
Brand Name :	NO
Model Number :	NO
Certification :	ISO2531
Payment Terms :	L/C, D/A, D/P, T/T
Supply Ability :	one container per half month
Delivery Time :	20 to60 days

Add to Cart

Product Details
Company Profile

Reducing Flange Ductile Iron Fittings Round Class PN10 PN16 PN25 Pressure

Reducing Flange Ductile Iron Fittings Round Class PN10 PN16 PN25 Pressure

Description

Type	Ductile Iron Pipes
Material	Iron
Shape	Round
Technics	Casting
Standards	ISO2531/En545/En598/Awwa C110

Surface Treatment : Zinc Coating/Bitumen Coating

Insider Treatment :Cermet Lining

Quality Control :Strict Inspection as Per Standard

Loading Port :China Mainly Port

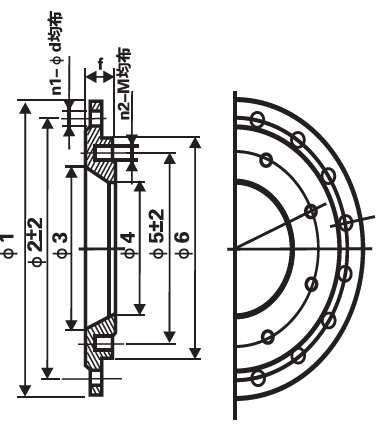

DNXdn	Φ1	Φ2	Φ3	Φ4	Φ5	Φ6	n1	n2	Φd	M	f	Weight(kg)
200X80	340	295	118	84	160	200	8	8	23	16	39	13.3
200 X 100	340	295	144	104	180	220	8	8	23	16	39	13.2
250X80	400	350	118	84	160	200	12	8	23	16	41	19.3
250 x 100	400	350	148	104	180	220	12	8	23	16	41	18.9
250 X 150	400	350	200	154	240	285	12	8	23	20	43	18.9
300X80	455	400	118	84	160	200	12	8	23	16	44	27.2
300 X100	455	400	148	104	180	220	12	8	23	16	44	26.8
300 X150	455	400	200	154	240	285	12	8	23	20	44	26.0
300 X 200	455	400	250	205	295	340	12	8	23	20	45	25.2
350 X 80	505	460	118	84	160	200	16	8	23	16	44	33.5
350 X 100	505	460	148	104	180	220	16	8	23	16	44	33.1
350X 150	505	460	203	155	240	285	16	8	23	16	44	32.3
350 X 200	505	460	250	205	295	340	16	8	23	20	44	31.1
350 X 250	505	460	303	254	350	400	16	12	23	20	47	32.0
400X80	565	515	118	84	160	200	16	8	28	16	44	41.3
400X100	565	515	148	104	180	220	16	8	28	16	44	40.8
400X 150	565	515	205	155	240	285	16	8	28	20	44	40.1
400 X200	565	515	270	205	295	340	16	8	28	20	45	38.4
400X250	565	515	303	254	350	400	16	12	28	20	47	39.0
400X300	565	515	354	309	400	455	16	12	28	20	49	38.0
500X80	670	620	118	84	160	200	20	8	28	I6	46	62.8
500X100	670	620	148	104	180	220	20	8	28	16	46	62.4
500X 150	670	620	203	155	240	285	20	8	28	20	46	61.4
500X200	670	620	250	205	295	340	20	8	28	20	47	60.3
500X250	670	620	303	254	350	400	20	12	28	20	49	59.2
500 X 300	670	620	354	309	400	455	20	12	28	20	51	57.0
500X350	670	620	409	354	460	505	20	16	28	20	51	53.0
500 X 400	670	620	464	409	515	565	20	16	28	24	51	49.0
600 X 80	780	725	118	84	160	200	20	8	31	16	49	95.6
600 X 100	780	725	148	104	180	220	20	8	31	16	49	95.0
600 X 150	780	725	205	155	240	285	20	8	31	20	49	93.7
600X200	780	725	250	205	295	340	20	8	31	20	50	92.3
600X250	780	725	303	254	350	400	20	12	31	20	52	90.7
600 X 300	780	725	354	309	400	455	20	12	31	20	55	88.2
600 X 350	780	725	409	354	460	505	20	16	31	20	55	84.2
600 x 400	780	725	464	409	515	565	20	16	31	24	55	78.3
600 x 450	780	725	515	455	565	615	20	20	31	24	55	72.6
800 X 80	1015	950	118	84	160	200	24	8	34	16	54	190.0
800 X 100	1015	950	143	104	180	220	24	8
