Anti Corrosion Ductile Iron Fittings All Socket Level Invert Tee AWWW C153

Ask Lasest Price
Brand Name :	NO
Model Number :	DN80-DN2600
Certification :	NO
Payment Terms :	L/C, D/A, D/P, T/T
Supply Ability :	10 tons per month
Delivery Time :	20-60 days

Add to Cart

Product Details
Company Profile

Anti Corrosion Ductile Iron Fittings All Socket Level Invert Tee AWWW C153

Anti Corrosion Ductile Iron Fittings All Socket Level Invert Tee AWWW C153

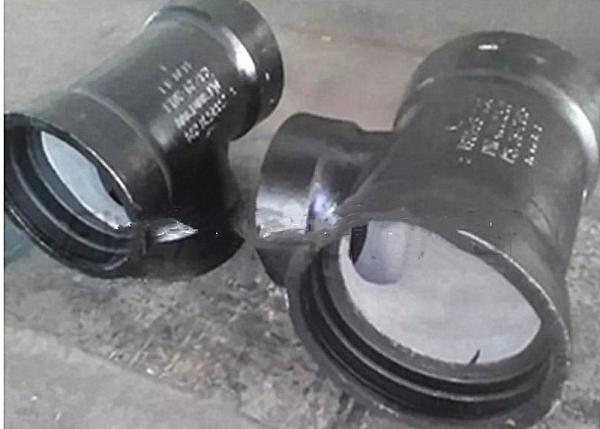

DN80 to DN2600 Ductile iron fittings All socket level invert tee

Ductile iron fittings All socket level invert tee Size from DN80 to DN2600 with fuu jointing types such as Standard joint, Tyton(push on ) joint, Mechianical Joint, Restained joint, Express joint, FLANGE JOINT ECT AWWW C110&C153 standard, ISO2531 standard, En545 & EN598 Standard is strictly carried out in production.

Quick Details

Place of Origin: China

Model Number:80MM--2600MM

Type:Tee

Material:Iron

Technics:Casting

Connection:Flange

Shape:Equal

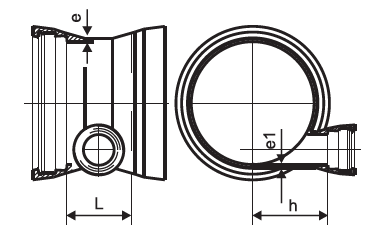

Main			Branch			Weight(kg)
DN	e	L	dn	e1	h	T type	K type
100	8.4	170	80	8.t	95	17.76	25.8
125	8.7	170	80	8.1	105	21.12	27.36
125	8.7	195	100	8.4	110	22.8	29.76
150	9.1	170	80	8.1	120	25.8	35.04
		195	100	8.4	120	28.2	37.2
		230	125	8.7	125	30.96	39.96
200	9.8	175	80	8.1	145	36	45.48
		200	100	8.4	145	38.4	46.56
		255	150	9.1	150	44.4	52.8
250	10.5	180	80	8.1	170	48.24	51.6
		200	100	8.4	170	51.36	57.48
		260	150	9.1	175	61.32	67.68
		315	200	9.8	180	67.08	73.08
300	11.2	190	80	8.1	195	71.28	78.48
		205	100	8.4	195	73.32	81.24
		215	125	8.7	200	7824	86.04
		260	150	9.1	200	80.64	93.12
		320	200	98	205	90.6	99.48
		375	250	10.5	210	100.92	110.52
350	11.9	180	80	8.1	220	76.32	89.4
		200	100	8.4	220	80.64	96
		250	150	9.1	225	86.04	100.32
		300	200	9.8	225	95.52	111.12
		360	250	10.5	230	102	117
		420	300	11.2	235	116	130.8
400	12.6	190	80	8.1	240	87.72	104.52
		210	100	8.4	245	91.2	108.72
		240	125	8.7	250	96.84	114.24
		270	150	9.1	250	101.64	119.76
		330	200	9.8	255	113.88	130.8
		380	250	10.5	260	125.52	141.48
		440	300	11.2	270	143.76	161.64
		500	350	11.9	270	152.88	174
450	13.3	190	80	8.1	270	99.72	123
		210	100	8.4	270	103.68	127.68
		240	125	8.7	270	109.92	133.8
		270	150	9.1	280	115.8	140.4
		330	200	9.8	280	129.24	152.64

ALL SOCKET LEVEL INVERT TEE.pdf
