K14 K12 K9 Ductile iron fitting Class PN10 PN16 PN25 Pipe with screwde on

Ask Lasest Price
Brand Name :	NO
Model Number :	DN80-DN2600
Certification :	NO
Payment Terms :	L/C, D/A, D/P, T/T
Supply Ability :	one container per half month
Delivery Time :	20 to 60 days

Add to Cart

Product Details
Company Profile

K14 K12 K9 Ductile iron fitting Class PN10 PN16 PN25 Pipe with screwde on

K14 K12 K9 Ductile iron fitting Class PN10 PN16 PN25 Pipe with screwde on

Size range	DN80-DN2600
Material	Ductile iron
Rate pressure	PN10, PN16 & PN25
Internal coating	Cement mortar lining
External coating	Zinc/Zinc alloy, bitumen,epoxy
Standards	ISO2531, BS EN545, BS EN598, GB/T13295
Accessories	NBR, SBR, EPDM rings according to ISO4633

Barrel							Flange Mass

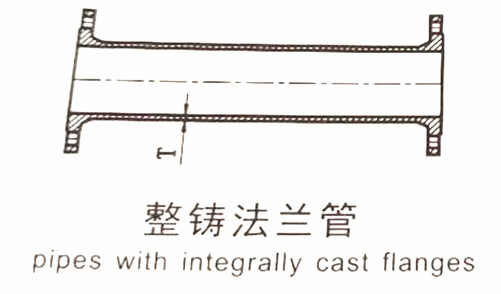

DN	K14		K12		K9		Intergral flange			Screwed-on or weld on flanges
	T	Mass/m	T	Mass/m	T	Mass/m	PN10	PN16	PN25	PN10	PN16	PN25	T type scoket	K type socket
80	8.1	16.1	7	14.1	6	12.2	2.9	2.9	2.9	3.5	3.5	3.5	3.2	5.9
100	8.4	20.4	7.2	17.7	6	14.9	3.3	3.3	3.3	4	4	4.5	4.3	5.9
125	8.8	26.4	7.5	22.7	6	18.3	4	4	4.6	5	5	5.6	5.7
150	9.1	32.4	7.8	28	6	21.8	4.9	4.9	5.9	6.1	6.1	7.1	7.1	8.4
200	9.8	46.1	8.4	39.7	6.3	30.1	6.8	6.6	8.7	8.5	8.3	10.4	10.3	11
250	10.5	61.3	9	52.8	6.8	40.2	9.8	9.2	13.1	11.8	11.4	15.3	14.2	14.1
300	11.2	78.1	9.6	67.3	7.2	50.8	12.8	12.4	18	15.6	15.2	20.8	18.6	22.4
350	11.9	96.5	10.2	83.1	7.7	63.2	14.1	17.2	25.5	17.6	20.7	29	23.7	27.2
400	11.9	116.2	10.8	100	8.1	75.5	16.3	21.9	33.2	20.5	26.1	37.4	29.3	31.5
450	13.3	137.5	11.4	118.3	8.6	89.7	18.1	26.7	42.2	24.1	37	43.3	36.2	37.3
500	14	160.6	12	138.2	9	104.3	21.8	37	48.7	27.6	42.8	54.5	42.8	42.8
600	15.4	211.3	13.2	181.8	9.9	137.3	30.8	57.3	71.5	38.4	64.9	79	59.3	55.4
700	16.8	268.4	14.4	230.8	10.8	173.9	40.5	55.6	90.3	50.2	65.3	101	79.1	73.9
800	18.2	332.1	15.6	285.5	11.7	215.2	54.8	74	123	66.7	85.9	137.5	102.6	90.2
900	19.6	401.7	16.8	345.4	12.6	260.2	64.3	88.2	149	78.7	102.6	164.5	129.9	115.6
1000	21	477.7	18	410.6	13.5	309.3	81.4	123	201	98.6	140.1	222.5	161.3	146.6
1100	22.4	560.4	19.2	481.7	14.4	362.8	105	141	224	124	184.3	251.8	194.7	172.4
1200	23.8	649	20.4	557.7	15.3	420.1	121	185	285	144.2	208.5	305.5	237.7	201
1400	26.6	845.7	22.8	726.8	17.1	547.2	148	216	368	178.2	246.3	399.5	385.3	265.8
1500	28	953.2	24	819.1	18	616.7	201.4	289	401	225.5	312	456.6	452	298.8
1600	29.4	1067	25.2	916.9	18.9	690.3	206.4	308	486	244.7	346.7	520	531	375.4
1800	32.2	1314.2	27.6	1129.3	20.7	850.1	236.3	362	602	283.5	409.4	638	705	490.6
2000	35	1586.8	30	1363.4	22.5	1026.3	279.4	432	785	336.4	489.2	873.7	843	626.4
2200	37.8	1883.9	32.4	1618.6	24.3	1218.3	345.6	512	/	413	579.9	/	/	784.2
2400	40.6	2207	34.8	1896.2	26.1	1427.2	398.8	601	/	478	680.3	/	/	1108
2600	43.4	2555.5	37.2	2195.6	27.9	1652.4	436.9	672	/	528.6	763.7	/	/	1295
