ISO2531 PN10 Ductile Iron Joints Blind Flange Di Flanged Fittings Rustproof

Ask Lasest Price
Brand Name :	NO
Model Number :	DN40-DN2200
Certification :	NO
Payment Terms :	L/C, D/A, D/P, T/T
Supply Ability :	30 tons per month
Delivery Time :	30 to 60 days

Add to Cart

Product Details
Company Profile

ISO2531 PN10 Ductile Iron Joints Blind Flange Di Flanged Fittings Rustproof

ISO2531 PN10 Ductile Iron Joints Blind Flange Di Flanged Fittings Rustproof

Ductile iron fittings Blind Flange according to ISO2531
Ductile Iron bind flange for potable water (blue), also called blank.
Blind Flange size range from DN40 to DN2200
Pressure rating :PN10/PN16/PN25
Coating with cement mortar lining and Zinc spaying & bituminous painting.

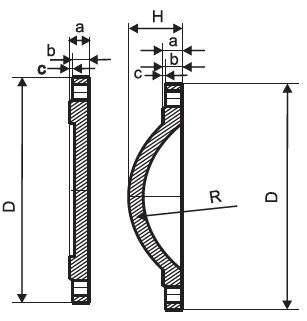

DN	D	a	b	C	H	R	Weight (kg)
40	150	19.0	16.0	3	/	/	2.0
50	165	19.0	16.0	3	/	/	2.4
60	175	19.0	16.0	3	/	/	2.7
65	1B5	19.0	16.0	3	/	/	3. 1
80	200	19.0	I6.0	3	/	/	3.5
100	250	19.0	16.0	3	/	/	4.3
125	250	19.0	16.0	3	/	/	5.6
150	285	19.0	16.0	3	/	/	7.2
200	340	20.0	17.0	3	/	/	11.0
250	400	22.0	19.0	3	/	/	16.9
300	455	24.5	20.5	4	/	/	24.0
350	506	24.5	20.5	4	69	325	30.7
400	565	24.5	20.5	4	76	375	38.1
450	615	25.5	21.5	4	84	423	47. 1
500	670	26.5	22.5	4	92	475	58.4
600	780	30.0	25.0	5	108	575	88.9
700	895	32.5	27.5	5	124	675	128.7
800	1015	35.0	30.0	5	140	775	180.1
900	1115	37.5	32.5	5	160	875	235. I
1000	1230	40.0	35.0	5	170	975	307.3
1100	1340	42.5	37.5	5	185	1075	391. 1
1200	1455	45.0	40.0	5	200	1175	575.0
1400	1675	46.0	41.0	5	230	1375	736.0
1500	1766	47.5	42.5	5	245	1475	990.0
1600	1915	49.0	44.0	5	260	1575	1239
1800	2115	52.0	47.0	5	290	1775	1717
2000	2325	55.0	50.0	5	320	1975	2253
2200	2550	59.0	53.0	5	350	2175	2372

Packaging Details

(1). We will pack your items by carton or plywood cases for exporting standard.

(2). We can also pack your items according to your requirements.

Our Service

1. Good quality and low price.

2. Good after-sale service.

3. Bring the finest goods to customer is our ultimate goal.
4. Products are exported to various countries.
