PN10 PN16 PN 25Ductile Iron Joints Pudddle Flange DN80 - DN2000 Blue Color

Ask Lasest Price
Brand Name :	NO
Model Number :	DN80-DN2000
Certification :	BS EN 454
Payment Terms :	L/C, D/A, D/P, T/T
Supply Ability :	one container per half month
Delivery Time :	20 -60 days

Add to Cart

Product Details
Company Profile

PN10 PN16 PN 25Ductile Iron Joints Pudddle Flange DN80 - DN2000 Blue Color

PN10 PN16 PN 25Ductile Iron Joints Pudddle Flange DN80 - DN2000 Blue Color

Puddle flange

Pressure rating: PN10/PN16/PN25

Accessories: gasket, bolts and nuts

cement lining inside and zinc and bitumen coating outside

Mechanical properties of ductile iron fittings

Standard	Nominal Diameter	Tensile Strength	Elongation	Hardness
Standard	DN mm	N/mm2	%	HB
ISO2531 BS EN545	DN80-2600	≥420	≥5	≤230

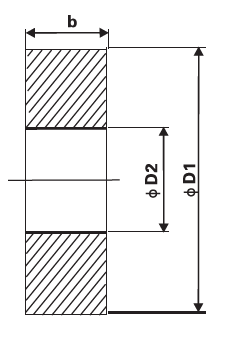

Item	PN10				PN16				PN25
DN	D1	D2	b	Weight /kg	D1	D2	b	Weight /kg	D1	D2	b 1	Weight /kg
80	220	98	16	2.9	220	98	16	2.9	220	98	16	2.9
100	220	118	16	3.3	220	118	16	3.3	235	118	16	3.3
125	250	144	16	4	250	144	16	4	270	144	16	4.6
150	285	170	16	4.9	285	170	16	4.9	300	170	17	5.9
200	340	222	17	6.8	340	222	17	6.6	360	222	19	8.7
250	400	274	19	9.8	400	274	19	9.2	425	274	21.5	13.1
300	455	326	20.5	12.8	455	326	20.5	12.4	485	326	23.5	18
350	505	378	20.5	14.1	520	378	22.5	17.2	555	378	26	25.5
400	565	429	20.5	16.3	580	429	24	21.9	620	429	28	33.2
450	615	480	20.5	18.1	640	480	26	26.7	670	480	30.5	42.2
500	670	532	22.5	121.8	715	532	27.5	37	730	532	32.5	48.7
600	780	635	25	30.8	840	635	31	57.3	845	635	37	71.5
700	895	738	27.5	40.5	910	738	34.5	55.6	960	738	41.5	90.3
800	1015	842	30	54.8	1025	842	38	74	1085	842	46	123
900	1115	945	32.5	64.3	1125	945	41.5	88.2	1185	945	50.5	149
1000	1230	1048	35	81.4	1255	1048	45	123	1320	1048	55	201
1100	1340	1152	37. 5	105	1355	1152	48.5	141	1420	1152	59.5	224
1200	1455	1255	40	121	1485	1255	52	185	1530	1255	64	285
1400	1675	1462	41	148	1685	1462	55	216	1755	1462	69	368
1500	1785	1565	42.5	201.4	1820	1565	57.5	289	1865	1565	72.5	421.9
1600	1915	1668	44	206.4	1930	1668	60	308	1975	1668	76	486
1800	2115	1875	47	236.3	2130	1875	65	362	2195	1875	83	611
2000	2325	2082	50	279.4	2345	2082	70	432	2425	2082	90	786
