Water Line Ductile Iron Fittings Double Socket Level Invert Tee With Flange Branch

Ask Lasest Price
Brand Name :	NO
Model Number :	DN80-DN2600
Certification :	NO
Payment Terms :	L/C, D/A, D/P, T/T
Supply Ability :	10 tons per month
Delivery Time :	20-60 days

Add to Cart

Product Details
Company Profile

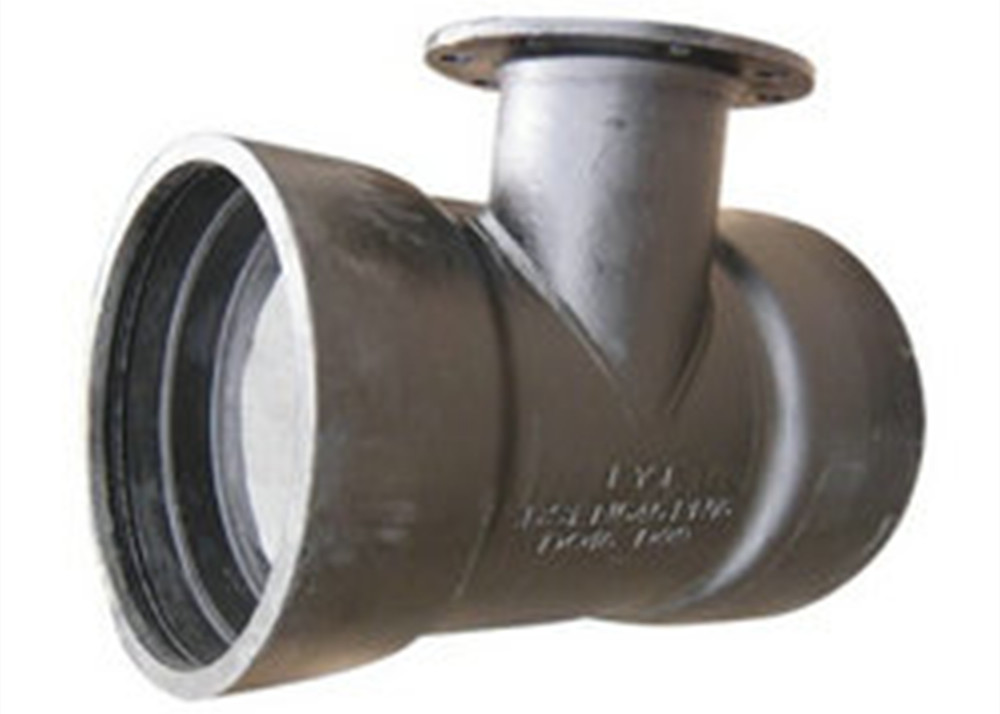

Water Line Ductile Iron Fittings Double Socket Level Invert Tee With Flange Branch

Water Line Ductile Iron Fittings Double Socket Level Invert Tee With Flange Branch

Key Specifications
Ductile cast iron
Size range: DN30 to DN2600
Manufacture standard: ANS/AWWA C110153
Coating exterior: Zinc spaying130g/m2 and bitumen coating 70μm thick.
Cement lining interior: Cement mortar lining
Special requirements on external coating and internal lining can be applied

Main				Branch			Weight(kg)
DN	e1	Lu	J	dn	e2	Lu'	PN10		PN16		PN25
DN	e1	Lu	J	dn	e2	Lu'	T type	K type	T type	K type	T type	K type
100	8.4	85	275	80	8.1	175	19.68	22.44	19.68	22.44	19.68	22.44
150	9.1	85	275	80	8.1	205	28.44	31.32	28.44	31.32	28.44	31.32
150	9.1	100	285	100	8.4	210	30.48	33.12	30.12	33.12	30.12	33.12
200	9.8	90	275	80	8.1	235	39	41.4	39	41.4	39	41.4
		100	280	100	8.4	240	41.16	43.56	41.16	43.56	41.16	43.56
		130	310	150	9.1	250	48.24	50.64	48.24	50.64	48.24	50.64
2S0	10.5	90	315	80	8.1	265	52.08	53.76	52.08	53.76	52.08	53.76
		100	325	100	8.4	270	53.88	55.68	53.88	55.68	54	54.96
		130	360	150	9.1	255	68.76	70.44	68.76	70.44	69.96	71.64
		160	385	200	9.8	280	69.48	70.92	69.48	70.92	71.64	73.32
300	11.2	90	340	80	8.1	295	70.56	73.32	70.56	73.32	70.56	73.32
		105	355	100	8.4	300	74.52	77.28	74.4	77.16	75.12	77.88
		130	390	150	9.1	285	85.08	91.56	86.28	91.56	86.28	92.76
		150	415	200	9.8	310	93.12	95.88	93.12	95.88	95.28	98.04
		190	445	250	10.5	320	104.76	107.52	104	107.16	108.72	111.48
350	11.9	95	345	80	8.1	325	81.96	87.96	82.0	87.96	81.96	87.96
		100	355	100	8.4	330	87.24	93.24	87	93.12	87.84	93.84
		115	360	125	8.7	315	88.08	94.08	88.08	94.08	88.8	94.8
		135	390	150	9.1	340	102.24	108.24	102.24	108.24	102.24	108.24
		160	415	200	10	350	106.44	112.44	106.44	112.44	108.6	114.6
		190	445	250	10.5	350	127.2	132	139	144	152.4	157.2
		210	475	300	11.2	350	136.8	146.4	144	148.8	157.2	162
400	12.6	95	355	80	8.1	355	97.08	104.64	97.08	104.64	97.08	104.64
		105	355	100	8.4	360	101.04	107.16	101.04	107.04	101.04	107.76
		115	360	125	8.7	345	110.4	116.4	110.4	116.4	110.4	116.4
		135	390	150	9.1	370	119.76	124.8	119.76	124.8	119.52	124.8
		160	415	200	9.8	380	126	130.8	124.8	130.8	127.2	132.96
		190	445	250	10.5	390	144	150	144.0	150	147.6	154.8
		220	475	300	11.2	400	160.8	165.6	159.6	164.4	166.8	171.6
		240	500	350	11.9	400	172.8	177.6	172.8	181.2	186	192
450	13.3	95	355	80	8.1	370	116.64	127.44	116.64	127.4	116.64	127.44
		110	355	100	8.4	390	127.2	132	128.4	133.2	128.4	133.2
		115	360	125	8.7	405	135.6	140.4	135.6	140.4	138.6	140.4
		135	390	150	9.1	400	144	148.8	144	147.6	148.8	152.4
		165	415	200	9.8	410	156	160.8	156	160.8	158.4	163.2
		195	445	250	10.5	420	169.2	174	168	172.8	172.8	177.6
		220	475	300	11.2	430	187.2	189.6	186	189.6	193.2	196.8
		240	500	350	11.9	440	198	202.8	201.6	206.4	212.4	217.2
		280	530	400	12.6	450	216	220.8	222	226.8	235.2	240

Double socket level invert tee with flange branch....
