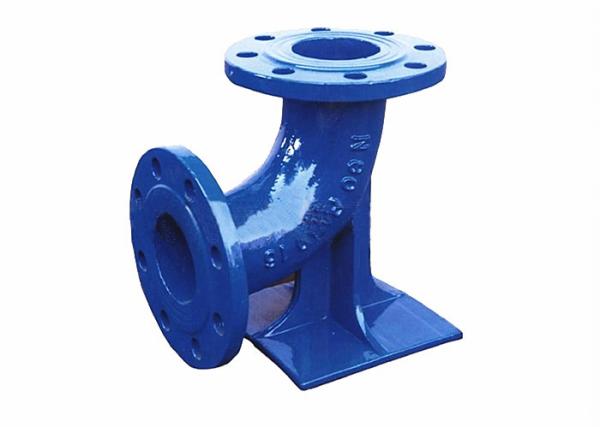

    Water Supply Ductile Iron Elbow Double Flange 90 Degree Duck Foot Bend

    Ask Lasest Price
    Brand Name : NO
    Model Number : DN40-DN1000
    Certification : ISO2531
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : one container per half month
    Delivery Time : 20 to 60 days
    • Product Details
    • Company Profile

    Water Supply Ductile Iron Elbow Double Flange 90 Degree Duck Foot Bend

    Water Supply Ductile Iron Elbow Double Flange 90 Degree Duck Foot Bend


    Pressure rating PN10,PN16 & PN25

    Size rangeDN80-DN2600
    MaterialDuctile iron
    Typebend
    Rate pressurePN10, PN16 & PN25
    Internal coatingCement mortar lining
    External coatingZinc/Zinc alloy, bitumen,epoxy
    StandardsISO2531, BS EN545, BS EN598, GB/T13295
    AccessoriesNBR, SBR, EPDM rings according to ISO4633

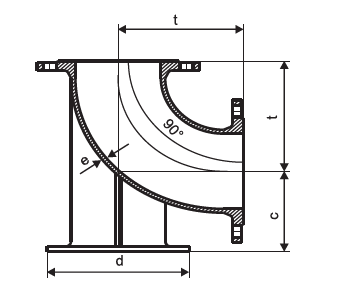

    Double flange 90 degree duckfoot bend


    DNetcdWeight (kg)
    PN10PN16PN25
    407.0140951507.77.77.7
    507.0150951509.19. 19.1
    607.016010016010.510.510.5
    657.016510016511.611.611.6
    807.016511018014.114.114.1
    1007.218012520017.817.818.8
    1257.520014022523.523.524. 5
    1507.822016025030.030.032. 0
    2008.426019030046.546.050.5
    2509.035022535075.075.082.0
    3009.6400255400106.0105.0116.0
    35010.2450290450139.0145.0162.0
    40010.8500320500178.0189.0212.0
    45011.4550355550229.0249.0275.0
    50012.0600385600283.0313.0337.0
    60013.2700450700428.0481.0509.0
    70014.4800515800700.0741.0811.0
    80015.6900580900846.0884.0982.0
    90016.810006451000111811651286
    100018.011007101100169817811937
