Ductile iron fittings All flange tee Class PN10 PN16 PN25

Ask Lasest Price
Brand Name :	NO
Model Number :	DN80 to DN2600
Certification :	NO
Payment Terms :	L/C, D/A, D/P, T/T
Supply Ability :	10 tons per month
Delivery Time :	20 to 60 days

Add to Cart

Product Details
Company Profile

Ductile iron fittings All flange tee Class PN10 PN16 PN25

Ductile iron fittings All flange tee Class PN10 PN16 PN25
We produce and supply ductile iron Ductile iron all-flange tee with the premium quality raw materials,ensure high durability and strength. The range of ductile iron all flange tee meets various industrial requirements. We offer these ductile iron all flange tee in different sizes and lengths in order to meet the various requirements of our esteemed clients.

Standard	Nominal Diameter	Tensile Strength	Elongation	Hardness
	DN mm	N/mm2	%	HB
ISO2531	80～2600	≥420	≥5	≤230

Application:

· Storm water drainage piping

· Effluent disposal system for domestic and industrial application

· Vertical connection to utilities and reservoirs

· Piling for ground stabilization

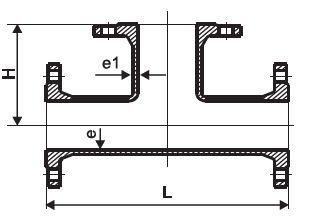

Main				Branch				Weight (kg)
DN	e	L		dn	e1	H		Series A			Series B
DN	e	Series A	Series B	dn	e1	Series A	Series B	PN10	PN16	PN25	PN10	PN16	PN25
80	8.1	330	330	80	8.1	165	165	15.6	15.6	15.6	15. 6	15.6	15.6
100	8.4	360	330	80	8.1	175	170	18.4	18.4	19.5	17.6	17.5	18.6
100	8.4	360	360	100	8.4	180	180	19.4	19.4	21.0	19.4	19.4	21.0
125	8.7	400	350	80	8.1	190	185	23.0	23.0	24.5	21.3	213.0	22.5
		400	370	100	8.4	195	195	24.0	24.0	26.0	22.9	22. 8	24.6
		400	400	125	8.7	200	200	25.5	25.5	27.5	25.5	25.5	27.6
150	9.1	440	360	80	8.1	205	200	26.5	28.5	31.O	25.6	25.6	27.5
		440	380	100	8.4	210	235	29.5	29.5	32.0	27.2	27.2	29.6
		440	410	125	8.7	215	215	31.0	31.0	34.0	29.7	29.7	32.2
		440	440	150	9.8	220	220	32.5	32.5	36.0	32.5	32.5	36.0
200	9.8	520	380	80	8.1	235	225	42.0	41.5	46.0	34.9	35.0	38.6
		520	400	100	8.4	240	230	43. 0	42.0	47.5	36.7	36. 8	40.9
		520	435	125	8.7	240	240	44.5	43.8	49.3	39.8	39.9	44.1
		520	460	150	9.1	250	245	46.0	45.5	51.0	42.6	42.7	47.3
		520	520	200	9.8	260	260	49.5	49.0	56.0	49.4	49.5	54.9
250	10.5	700	405	80	8.1	265	265	66.0	65.3	72.6	47.9	47.2	54.5
		700	425	100	8.4	275	270	68.0	67.0	75.0	50.1	49.3	57.2
		700	455	125	8.7	290	275	68.7	67.9	75.9	53.3	52.5	60.5
		700	485	150	9.1	300	280	70.6	69.9	78.1	56.8	56.1	64.3
		700	540	200	9.8	325	290	76.0	75.0	85.0	63.8	63.1	72.2
		700	600	250	10.5	350	300	82.0	81.0	93.0	72.8	71.7	32.7
300	11.2	800	425	80	8.1	290	295	91.5	90. 9	101.3	62.3	61.7	72.1
		800	450	100	8.4	300	300	94.0	93.0	105.0	65.2	64.6	75.5
		800	480	125	8.7	310	300	94.0	93.4	104.4	68.7	68.1	79.1
		800	505	150	9.1	325	310	96.0	95.4	106.7	72.5	71.9	83.2
		800	565	200	9.8	350	320	102.0	101.0	114.0	80.7	80.1	92.3
		800	620	250	10.5	375	330	106.9	105. 9	120.0	90.1	89.1	103.2
		800	680	300	11.2	400	340	116.0	115.0	131.0	100.9	100.0	115.6
350	11.9	850	445	80	8.1	325	325	113.8	119.4	135.2	74.7	79.3	96.1
		850	470	100	8.4	325	330	116.0	122.0	139.0	78.0	82.6	99.9
		850	480	125	8.7	325	330	116.0	122.0	138.0	80.2	84.8	102.2
		850	530	150	9.1	325	340	117.2	122.8	139.5	86.8	91.4	109.1
		850	585	200	9.8	325	350	121.0	128.0	146.0	95.5	100.2	118.8
		850	645	250	10.5	325	360	123.9	129.2	148.6	106.3	110.5	131.0
		850	680	300	11.2	425	365	136.2	141.5	162.5	115.1	119.4	141.4
		850	760	350	11.9	425	380	142.0	151.0	176.0	128.3	135.2	160.4
400	12.6	900	470	80	8.1	350	355	140.9	153.9	172.3	91.0	104.0	122.4
		900	490	100	8.4	350	360	143.0	154.0	177.0	94.3	107.2	126.2
		900	500	125	8.7	350	345	142.5	155.8	174.8	96.2	109.2	128.2
		900	550	150	9.1	350	370	144.2	157.2	176.5	104.2	117.2	136.5
		900	610	200	9.8	350	380	148.0	159.0	184.0	114.6	127.6	147.8
		900	665	250	10.5	350	390	150.6	163.3	185.3	125.8	138.4	160.5
		900	725	300	11.2	450	400	162.7	175.4	199.0	138.4	151.1	174.7
		900	760	350	11.8	450	410	167.4	183.2	209.5	147.2	162.5	189.3
		900	840	400	12.6	450	420	174.0	191.0	225.0	163.3	182.8	210.4
450	13.3	950	470	80	8.1	375	370	169.7	188.3	209.1	103.6	122.2	143.0
		950	515	100	8.4	375	375	170.5	189.0	210.4	110.7	129.2	150.6
		950	530	125	8.7	375	375	171.6	190.2	211.6	113.8	132.4	153.8
		950	570	150	9.1	375	400	172.9	191.5	213.2	121.5	140.1	161.8
		950	630	200	9.8	375	410	175.5	194.1	216.7	133.1	151.7	174.3
		950	690	250	10.5	375	420	179.1	197.3	221.8	146.1	164.3	188.8
		950	745	300	11.2	475	430	190.5	209.1	235.1	159.2	177.5	203.5
		950	790	350	11.9	475	440	195.2	216.6	245.3	169.9	190.8	220.0
		950	680	400	12.6	475	450	201.1	226.2	256.2	185.9	211.0	241.0
		950	920	450	13.3	475	460	207.0	234.9	266.1	200.8	228.7	259.9
500	14	1000	515	80	8.1	400	400	207.4	236.2	257.0	129.5	158.3	179.1
		1000	535	100	8.4	400	400	210.0	241.0	265.0	133.5	162.3	183.6
		1000	560	125	8.7	400	405	209.3	238.1	259.5	138.7	167.5	188.9
		1000	600	150	9.1	400	410	210.6	239.4	261.1	146.6	175.4	197.2
		1000	650	200	9.8	400	415	215.0	245.0	271.0	157.5	186.3	208.9
		1000	680	250	10.5	400	430	216.5	244.9	269.4	166.9	195.3	219.8
		1000	740	300	11.2	500	450	228.1	256.6	282.6	182.4	210.9	236.9
		1000	810	350	11.9	500	465	232.2	263.8	292.5	198.3	229.4	258.6
		1000	885	400	12.6	500	480	242.0	276.0	311.0	216.9	252.2	282.2
		1000	940	450	13.3	500	490	242.9	281.0	312.2	231.9	270.0	301.2
		1000	1000	500	14.0	500	500	252.0	297.0	332.0	252.0	297.0	332.0
600	15.4	1100	525	80	8.1	450	450	296.0	346.0	370.8	174.5	224.5	249.3
		1100	550	100	8.4	450	450	296.7	346.7	372.0	180.5	230.5	255.8
		1100	582	125	8.7	450	450	297.8	347.8	373.2	187.9	237.9	263.3
		1100	650	150	9.1	450	455	299.0	349.0	374.7	204.2	254.2	279.9
		1100	700	200	9.8	450	460	305.0	358.0	388.0	217.1	267.2	293.8
		1100	740	250	10.5	450	480	304.4	354.0	382.5	230.1	279.8	308.2
		1100	810	300	11.2	550	500	315.6	365.3	395.3	250.4	300.1	330.1
		1100	885	350	11.9	550	520	319.3	372.1	404.8	270.9	323.2	356.4
		1100	930	400	12.6	550	530	329.0	387.0	427.0	285.9	342.4	376.4
		1100	970	450	13.3	550	540	328.6	387.9	423.1	299.7	359.0	394.2
		1100	1000	500	14.0	550	545	336.1	400.5	235.7	314.2	378.6	413.8
		1100	1100	600	15.4	550	550	355.0	434.0	477.0	355.0	434.0	477.0
700	16.8	520	535	80	8.1	505	500	223.3	251.5	316.5	227.2	255.4	320.4
		540	550	100	8.4	510	500	229.5	257.6	323.2	232.0	260.1	325.7
		570	580	125	8.7	510	505	238.5	266.7	332.3	241.1	269.3	334.9
		595	600	150	9.1	520	510	246.8	275.0	340.9	247.8	276.0	341.9
		650	650	200	9.5	525	525	258.0	298.0	359.3	258.0	298.0	359.3
		705	700	250	10.5	530	525	282.5	310.3	379.0	280.8	308.6	377.3
		760	750	300	11.2	540	530	301.6	329.5	399.7	295.1	323.0	393.2
		815	800	350	11.9	550	540	319.4	350.4	423.3	314.4	344.9	418.3
		870	870	400	12.6	555	555	343.0	379.0	447.1	343.0	379.0	447.1
		925	990	450	13.3	560	555	356.5	394.0	469.4	363.4	400.9	476.3
		980	1000	500	14.0	570	560	378.6	421.2	496.6	382.4	425.0	500.4
		1090	1180	600	15.4	585	575	425.4	478.6	556.0	447.4	500.6	578.0
		1200	1200	700	16.8	600	600	477.0	523.0	618.7	477.0	523.0	618.7

All flange tee.pdf
