Hot Dip Galvanised Carbon Steel Pipe Seamless APL 5L GRADE B Black Paint

Ask Lasest Price
Brand Name :	NO
Model Number :	2inch -8inch
Certification :	API, ISO
Price :	Negotiation
Payment Terms :	L/C, T/T
Delivery Time :	30-60 days

Add to Cart

Product Details
Company Profile

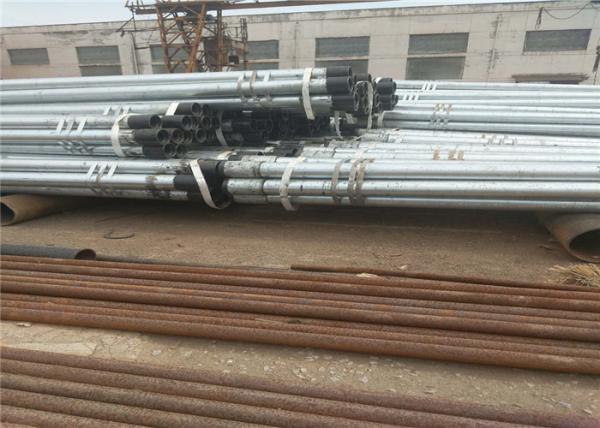

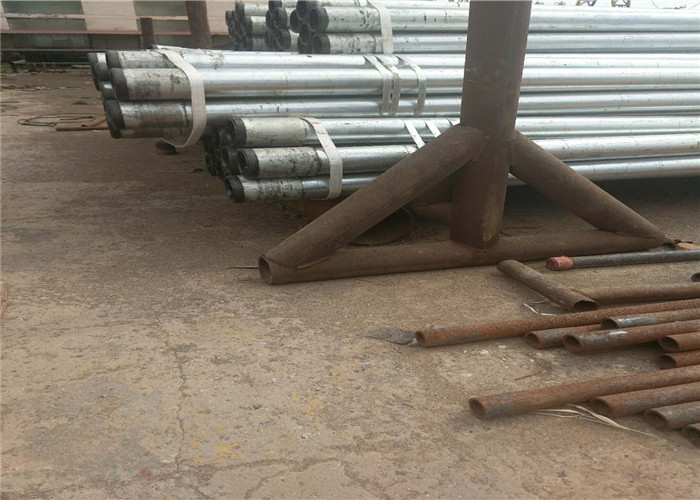

Hot Dip Galvanised Carbon Steel Pipe Seamless APL 5L GRADE B Black Paint

Hot Dip Galvanised Carbon Steel Pipe Seamless APL 5L GRADE B Black Paint

Description of Hot dip galvanized high pressure seamless carbon steel pipe of APL 5L GRADE B

ALL PIPES ARE NEW HOT DIPPED GALVANIZEDCARBON STEEL SEAMLESS PIPES THREADED LONG ROUND THREADING FROM BOTH SIDES WITH MACHINE FIXED COUPLING FROM ONE SIDE NOT LESS THAN 200MM LENGTH, THE PIPES FROM BOTH ENDS TO BE PROTECTED BY THREAD PROTECTORS. SPECIFICATION ACCORDING TO API 5L GRADE B SCH.40.

THREADING ACCORDING TO API 5L (8 THREADS PER INCH) LONG ROUND THREADING TAPERED 3/4"/FOOT BASED ON PIPE DIAMETER.

COUPLING: GALVAIZED SEAMLESS OF THE SAME MATERIAL OF PIPES (8TPI) LONG ROUND THREADING IN LENGTH OF 200MM. MACHINE FIXED FROM ONE SIDE OF THE PIPE. PLEASE, STATE STANDARD AND SPECIFICATION OF GALVANIZATION

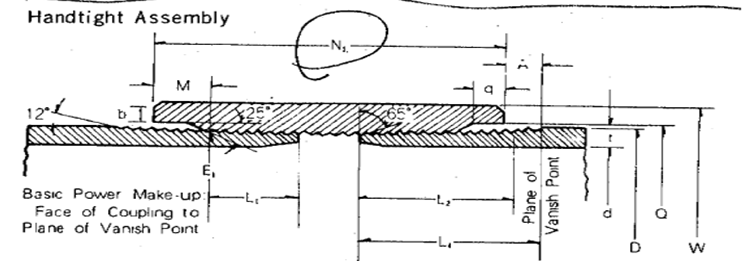

Processing sketch:

Technical data:

Size	WT (SCH40)	Length End of pipe to Hand tight plane L₁ (mm)	Length Effective Thread L₂ (mm)	Total length End of pipe to vanish point L₄ (mm)	Number per inch	Minimum length, full Crest Threads from end of pipe L_C (mm)	End of pipe to Center of Coupling, Power-Tight Make-Up J (mm)	Length N_L (mm)
2”(60.33)	3.91mm	24.86	36.9	42	10	19	12.7	203
3”(88.9)	5.49mm	42.5	48	58.75	8	35.9	12.7	203
4”(114.3)	6.02mm	48.8	68.96	76.2	8	47.625	12.7	203
5”(141.3)	6.55mm	61.5	81.66	88.9	8	60.325	12.7	203
6”(168.28)	7.11mm	70.45	90	97.6	8	69.025	12.7	220

Shipping & Delivery:

20 feet container, 40 feet container, Bulk Vessel.

1. 20 feet container: when the pipe length within 5.8 meters, will arrange shipping by 20 feet container, load 25 ton/per container.

2. 40 feet container: when the pipe length within 11.5 meters, will shipping by 40 feet containers, load 25 tons/per container.

3. Bulk Vessel: when the pipe length over 11.5 meters, and quantity is big, will shipping by Bulk Vessel, the freight is cheap in this way.
