Anti Rust Seamless Black Steel Pipe , Carbon Steel Seamless Tube ASTM A53

Ask Lasest Price
Brand Name :	NO
Model Number :	2inch -8inch
Certification :	API, ISO
Price :	Negotiation
Payment Terms :	L/C, T/T
Delivery Time :	30-60 days

Add to Cart

Product Details
Company Profile

Anti Rust Seamless Black Steel Pipe , Carbon Steel Seamless Tube ASTM A53

Anti Rust Seamless Black Steel Pipe , Carbon Steel Seamless Tube ASTM A53

Description of Seamless steel pipes with black painting and complete with seamless steel couplings

ALL PIPES ARE NEW BLACK CARBON STEEL SEAMLESS PIPES THREADED LONG ROUND THREADING FROM BOTH SIDES WITH MACHINE FIXED COUPLING FROM ONE SIDE NOT LESS THAN 200MM LENGTH, THE PIPES FROM BOTH ENDS TO BE PROTECTED BY THREAD PROTECTORS SPECIFICATION ACCORDING TO API 5L GRADE B SCH.40 THREADING

ALL BRAND NEW BLACK CARBON STEEL SEAMLESS PIPES THREADED LONG ROUND THREADING FROM BOTH SIDES WITH MACHINE FIXED COUPLING FROM ONE SIDE NOT LESS THAN 200MM LENGTH, THE PIPES FROM BOTH ENDS TO BE PROTECTED BY THREAD PROTECTORS. SPECIFICATION ACCORDING TO API 5L GRADE B SCH.40.

THREADING ACCORDING TO API 5L (8 THREADS PER INCH) LONG ROUND THREADING TAPERED 3/4"/FOOT BASED ON PIPE DIAMETER.

COUPLING: SEAMLESS OF THE SAME MATERIAL OF PIPES (8TPI) LONG ROUND THREADING IN LENGTH OF 200MM. MACHINE FIXED FROM ONE SIDE OF THE PIPE.

Processing sketch:

Technical data:

Size	WT (SCH40)	Length End of pipe to Hand tight plane L₁ (mm)	Length Effective Thread L₂ (mm)	Total length End of pipe to vanish point L₄ (mm)	Number per inch	Minimum length, full Crest Threads from end of pipe L_C (mm)	End of pipe to Center of Coupling, Power-Tight Make-Up J (mm)	Length N_L (mm)
2”(60.33)	3.91mm	24.86	36.9	42	10	19	12.7	203
3”(88.9)	5.49mm	42.5	48	58.75	8	35.9	12.7	203
4”(114.3)	6.02mm	48.8	68.96	76.2	8	47.625	12.7	203
5”(141.3)	6.55mm	61.5	81.66	88.9	8	60.325	12.7	203
6”(168.28)	7.11mm	70.45	90	97.6	8	69.025	12.7	220

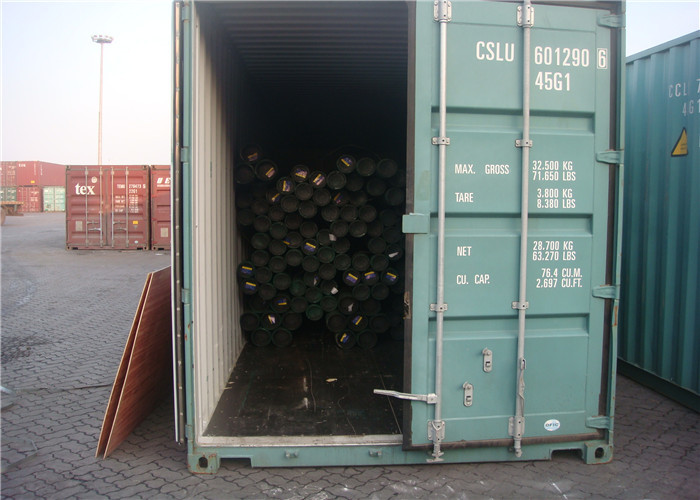

Packing:Plastic plugs in both ends, Hexagonal bundles of max. 2,000kg with several steel strips, Two tags on each bundle, Wrapped in waterproof paper, PVC sleeve, and sackcloth with several steel strips, Plastic caps.

Test:Chemical Component Analysis, Mechanical Properties (Ultimate tensile strength, Yield strength, Elongation), Technical Properties (Flattening Test, Bending Test, Blow Test, Impact Test), Exterior Size Inspection, Hydrostatic Test, X-ray Test.
