Black Painting Carbon Steel Seamless Tube Astm A106 Seamless Pipe Rustproof

Ask Lasest Price
Brand Name :	NO
Model Number :	2inches -8inches
Certification :	API, ISO
Price :	by Negotiation
Payment Terms :	L/C, T/T
Delivery Time :	60-80 days

Add to Cart

Product Details
Company Profile

Black Painting Carbon Steel Seamless Tube Astm A106 Seamless Pipe Rustproof

Black Painting Carbon Steel Seamless Tube Astm A106 Seamless Pipe Rustproof

Description of Black steel pipe newly produced seamless steel pipes completed with seamless steel couplings

ALL NEWLY PRODUCED OF BEST QUALITY CARBON STEEL SEAMLESS PIPES, ACCORDING TO API 5L GR.B, SCH. 40, THICKNESS PLANE BEVELED ENDS AT 30 DEGREE. ALL IN LENGTH OF (6) METERS, WITH LENGTH TOLERANCE OF -0/+20MM. ALL FULLY STRAIGHT, CLEAN WITHOUT RUST BEFORE FINAL PAINTING IN BLACK COLOR. AND UNIFORM WALL THICKNESS. PACKED IN BUNDLES OF MAX 3 TONS

Processing sketch:

Technical data:

Size	WT (SCH40)	Length End of pipe to Hand tight plane L₁ (mm)	Length Effective Thread L₂ (mm)	Total length End of pipe to vanish point L₄ (mm)	Number per inch	Minimum length, full Crest Threads from end of pipe L_C (mm)	End of pipe to Center of Coupling, Power-Tight Make-Up J (mm)	Length NL (mm)
2”(60.33)	3.91mm	24.86	36.9	42	10	19	12.7	203
3”(88.9)	5.49mm	42.5	48	58.75	8	35.9	12.7	203
4”(114.3)	6.02mm	48.8	68.96	76.2	8	47.625	12.7	203
5”(141.3)	6.55mm	61.5	81.66	88.9	8	60.325	12.7	203
6”(168.28)	7.11mm	70.45	90	97.6	8	69.025	12.7	220

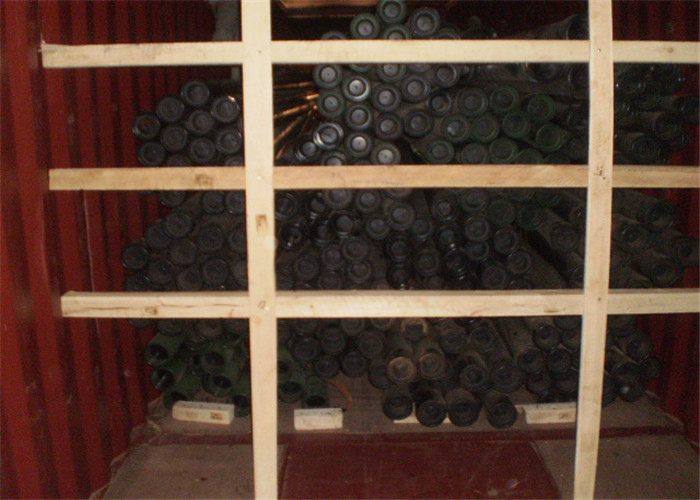

Loading into containers

Black Painting Carbon Steel Seamless Tube Astm A106 Seamless Pipe Rustproof

PACKING: IN BUNDELS WITH STEEL STRAPS, BUNDEL WEIGHT NOT EXCEEDING 2 TONS.THICKNESS OF COUPLING FROM THE

BEGINNING OF THREAD FROM THE MIDDLE IT WILL MORE ACCORDING TO TAPER. THE MATERIAL SEAMLESS OF SAME MATERIAL OF PIPES ( API 5L GRADE B)

Shipping marks :MADE IN CHINA to be printed on each pipe as part of shipping marks

FAQ

1. Can I get free samples?
A: Yes, we can provide you the free samples, but you need to bear their own delivery costs.

2. Can I request to change the form of packaging and transportation?
A: Yes, We can change the form of the packaging and transportation according to your request, but you have to bear their own costs incurred during this period and the spreads.

3. Can I request to advance the shipment?
A: It should be depends on whether there is sufficient inventory in our warehouse.

4. Can I have my own Logo on the product?
A: Yes, you can send us your drawing and we can make your logo, but you have to bear their own the cost.

5. Can you produce the products according to my own drawings?
A: Yes, we can produce the products according to your drawings that will be most satisfy you.
