BSEN545 BSEN598 Ductile Iron Joints Welding Flange Connect DI Pipes Casting

Ask Lasest Price
Brand Name :	NO
Model Number :	DN80-DN2000
Certification :	NO
Payment Terms :	L/C, D/A, D/P, T/T
Supply Ability :	30 tons per month
Delivery Time :	30 to 60 days

Add to Cart

Product Details
Company Profile

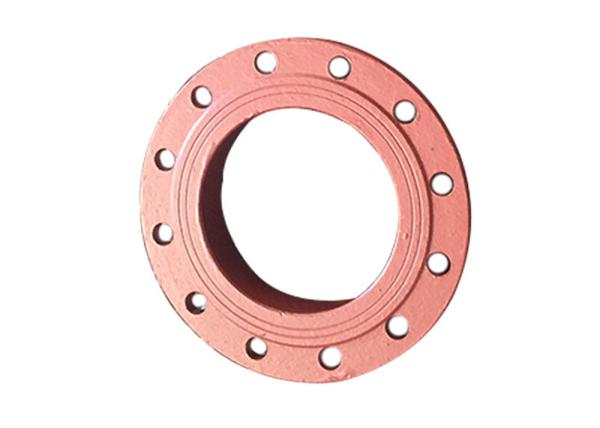

BSEN545 BSEN598 Ductile Iron Joints Welding Flange Connect DI Pipes Casting

BSEN545 BSEN598 Ductile Iron Joints Welding Flange Connect DI Pipes Casting

Welding Flange range from DN80 to DN2000. According to pressure rating it is divided in to PN10 welding flange, PN16 welding flange and PN25 welding flange.

Details

Material: Iron

Technics: Casting

Connection: Flange

Shape: Equal

Head Code: Square

surface finish: epoxy,paint,galvanized

color: blue or red

type: grooved fitting and coupling

gasket ring: EPDM

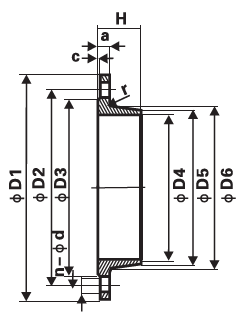

DN	D1	D2	D3	D4	D5	D6
80	220	16	132	98	112	118
100	220	180	156	118	133	139
125	250	210	170	144	158	164
150	285	240	211	170	186	192
200	340	295	266	222	240	246
250	400	350	319	274	294	300
300	455	400	370	326	346	352
350	505	460	429	378	400	408
400	565	515	480	429	451	459
450	615	565	530	480	500	506
500	670	620	582	532	552	558
600	780	725	682	635	655	663
700	895	840	794	738	760	768
800	1015	950	901	842	866	876
900	1115	1050	1001	945	971	981
1000	1230	1160	1112	1048	1076	1086
1100	1340	1270	1218	1152	1180	1190
1200	1455	1380	1328	1255	1285	1295
1400	1675	1590	1530	1462	1496	1512
1500	1785	1700	1640	1565	1601	1617
1600	1915	1820	1750	1668	1706	1722
1800	2115	2020	1950	1875	1917	1933
2000	2325	2230	2150	2082	2126	2136

DN	a	C	d	n/pcs	r	H	Weight(kg)
80	19	3	19	8	6	50	3.3
100	19	3	19	8	6	60	4.1
125	19	3	19	8	6	60	4.9
150	19	3	23	8	8	60	6.3
200	20	3	23	8	8	64	8.9
250	22	3	23	12	10	64	12.2
300	25	4	23	12	10	74	16.2
350	25	4	23	16	10	74	18.9
400	25	4	28	16	10	80	22.8
450	25	4	28	20	12	80	24.0
500	27	4	28	20	12	86	29.2
600	30	5	31	20	12	96	40.2
700	33	5	31	24	12	98	53.9
800	35	5	34	24	12	100	71.7
900	38	5	34	28	12	103	84.4
1000	40	5	37	28	12	120	111.1
1100	43	5	37	32	12	123	130.6
1200	45	5	40	32	15	128	159.7
1400	46	5	43	36	15	138	211.8
1500	48	5	43	36	15	140	242.8
1600	49	5	49	40	15	142	288.0
1800	52	5	49	44	15	145	336.7
2000	55	5	49	48	15	148	389.5

PN10 PN16 PN25 welding flange.pdf

Packaging Details

(1). We will pack your items by carton or plywood cases for exporting standard.

(2). We can also pack your items according to your requirements.
